How to Choose an MPPT Controller for High-voltage PV Modules?

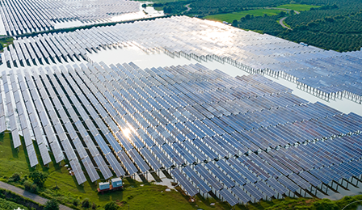

As the photovoltaic (PV) industry rapidly advances, large-scale solar projects, especially off-grid/storage stations, are increasingly utilizing high-voltage PV modules to minimize line losses, reduce costs, and enhance system efficiency. This trend, however, imposes stringent demands on the MPPT controller in terms of reliability, safety, and adaptability, making the selection of such a controller crucial for ensuring the long-term, efficient, and stable operation of large PV power plants.

Requirements for MPPT Controllers in Large High-voltage PV Modules

Compared to conventional PV systems, MPPT controllers deployed in large-scale high-voltage power stations face significantly elevated performance and safety demands. These requirements are primarily reflected in the following key areas:

1. Extremely High Voltage and Power Capacity

l Voltage Threshold: The open-circuit voltage (Voc) of high-voltage strings can easily exceed 1000 VDC, especially in low-temperature environments. MPPT controllers must support a maximum PV input voltage (e.g., 1500 VDC) that exceeds this threshold, ensuring a sufficient safety margin for environmental variations.

l Power Scale: Power plants often range from hundreds of kilowatts to megawatts, requiring controllers with sufficiently high single-unit power (e.g., above 200 kW) to reduce the number of parallel connections, simplify system structure, and enhance overall reliability.

2. Fail-Safe Security Risk Management

High-voltage Safety Isolation: High voltage inherently brings an elevated risk of electric shock and arcing. The controller (solar MPPT) must meet industrial-grade or higher safety standards, with robust electrical isolation, high insulation ratings, and comprehensive protection measures.

l Comprehensive Protection Mechanisms: The controller must be equipped with fast and precise protection features, including overvoltage/undervoltage, overcurrent, short circuit, over-temperature, and DC arc-fault detection. These ensure rapid and reliable disconnection of high-voltage circuits upon fault detection..

l Lightning and Surge Protection: Given the outdoor exposure of large-scale plants, high-performance lightning and surge protection can mitigate transient overvoltage risks.

3. Efficiency Optimization Challenges in Complex Scenarios

In large power plants, PV strings often vary in orientation, tilt, and shading conditions. A single MPPT channel is therefore inadequate for ensuring global energy yield optimization. The controller should support multiple independent MPPT inputs, allowing strings with varying configurations to be connected to the same unit—each operating at its individual maximum power point, thereby maximizing overall energy harvest.

4. System Management and Environmental Adaptability

l BMS Integration: Seamless and stable communication with the BMS is essential to enable intelligent charging/discharging strategies and battery health monitoring.

l Ruggedized Design: The unit should be capable of reliable operation in harsh industrial environments (exposure to dust, high temperatures, and humidity), featuring a high ingress protection rating (e.g., IP54) and a wide operating temperature range.

Shortcomings of Traditional MPPT Controllers

Inadequate Hardware

The maximum input voltage is typically 600 VDC or less, making them incompatible with high-voltage components. Single-unit power is generally low, requiring extensive parallel connections in large power plants, which complicates the system and increases failure points.

Lack of Protection Mechanisms

Regular models focus on basic protection, offering only simple overcharge and short-circuit protection. Internal protection devices, such as relays or low-capacity circuit breakers, lack the breaking capacity and longevity to handle frequent switching under high-voltage and high-current conditions. Advanced protection features like professional insulation monitoring are often missing.

Deficiencies in System Management:

l Standalone Operation: Traditional units lack the functionality for multi-unit parallel expansion, which is essential to meet the high-power demands of large-scale power plants.

l Simple Communication and Monitoring: They only support basic data transmission, lacking industrial-grade communication protocols (such as CAN/RS485) and sophisticated remote monitoring and fault diagnosis capabilities.

Limited Environmental Adaptability

Lower protection ratings and designs that do not account for long-term, stable operation in industrial settings may lead to higher failure rates in harsh environments.

ATESS SMC200 for Large-scale Solar Projects

To meet the stringent demands of large-scale, high-voltage off-grid and energy storage power plants, the ATESS SMC200 series industrial-grade MPPT controller stands out as an ideal solution. It masterfully combines high-voltage capability, integrated design, and superior safety performance.

1. Exceptional High-Voltage Handling and High Efficiency
The controller operates within an impressive MPPT voltage range of 900V to 1300V, ensuring maximum energy harvest under demanding conditions. Delivering up to 200kW of charging power with a peak efficiency of 99%, it supports a wide output voltage range of 600V to 900V (700V-900V at full load) and is seamlessly compatible with both lead-acid and lithium-ion batteries.

2. Highly Integrated and Modular Design
It integrates a PV combiner box and an MPPT controller into a single, streamlined unit. This integrated approach eliminates separate components, simplifies installation, and reduces costs, allowing for direct connection of PV modules to their bases.
Furthermore, with 8 built-in MPPTs supporting up to 8 PV strings, it handles a maximum PV power of 200kW and a robust input current of 160A (20A per string), effectively mitigating string mismatch issues.
The system supports the parallel operation of an unlimited number of units. Its modular architecture enables easy capacity expansion by connecting multiple SMC200s, making it suitable for projects of any scale. A transformerless topology further ensures maximum efficiency and adaptability.

3. Built for Reliability in Harsh Environments
Engineered to withstand harsh weather, the MPPT solar controller offers excellent water resistance. An intelligent fan cooling system maintains optimal performance across an operating temperature range of -25°C to +55°C, guaranteeing long-term reliability.

4. Comprehensive Safety and Intelligent Management

l Critical Safety Integration: A built-in, professional-grade DC circuit breaker ensures the safe and reliable interruption of the high-voltage DC circuit during faults.

l Full System Protections: It offers comprehensive protection against PV reverse polarity, output overload, over-temperature, short circuits, and includes integrated Class II lightning surge protection.

l Advanced Battery Management: Communication with mainstream BMS is enabled via CAN/RS485, supporting customizable charge/discharge strategies for precise management and extended battery lifespan.

Conclusion

The rapid growth of large-scale, high-voltage photovoltaic power plants necessitates a fundamental shift in the design and capabilities of MPPT controllers. The ATESS SMC200 series is specifically engineered to address these challenges, successfully bridging the performance and safety gaps left by traditional controllers with its exceptional high-voltage handling, up to 200kW single-unit power, multi-tracker efficiency, modular scalability, and industrial-grade protection.
